P3 0-150 PSI Pressure Sensor (0-5v) - Universal
Keep an eye on those pressures with our simple analog pressure sensor
5 volt sensor **DO NOT POWER WITH 12 VOLT SOURCE**
To use with the P3 Gauge, simply select the "PS" (pressure sensor) option for one of the two universal analog inputs.
0-150 PSI pressure sensor
- Adds pressure readout to P3 gauge using analog input
- Can measure oil, water, or air pressure
- 10" wiring harness
- 1/8" NPT fitting
- Can "T" into oil pressure galley along with factory oil pressure switch
Can be used to monitor
- Engine oil pressure
- Air ride pressure
- Coolant system pressure

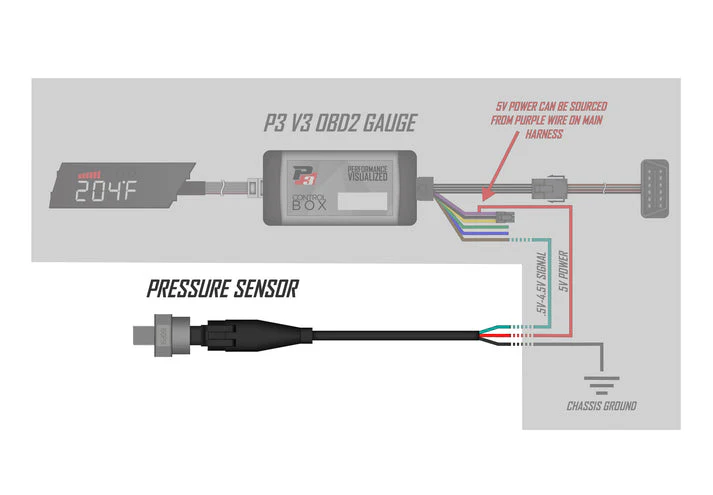

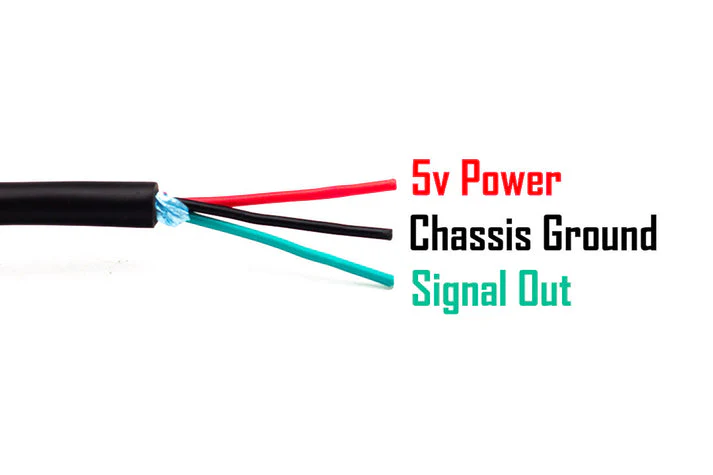

Simple 3 wire harness
- Red - 5 volt power supply (can be sourced from purple wire on P3 harness)
- Black - Chassis ground
- Green - Signal output (routed to brown or blue wire on P3 harness)
