ARM Motorsports S55 Charge Pipe / J Pipe - BMW M2 Comp 2019-2020 / M3 & M4 (F8x) 2015-2020
HIGHLIGHTS
• FULL T6061 ALUMINUM CONSTRUCTION
• SECURED THROTTLE BODY CONNECTION
• SECURED THROTTLE BODY CONNECTION
• 2X METHANOL/NITROUS PORTS
• DIRECT FIT
• DIRECT FIT
PROFILE

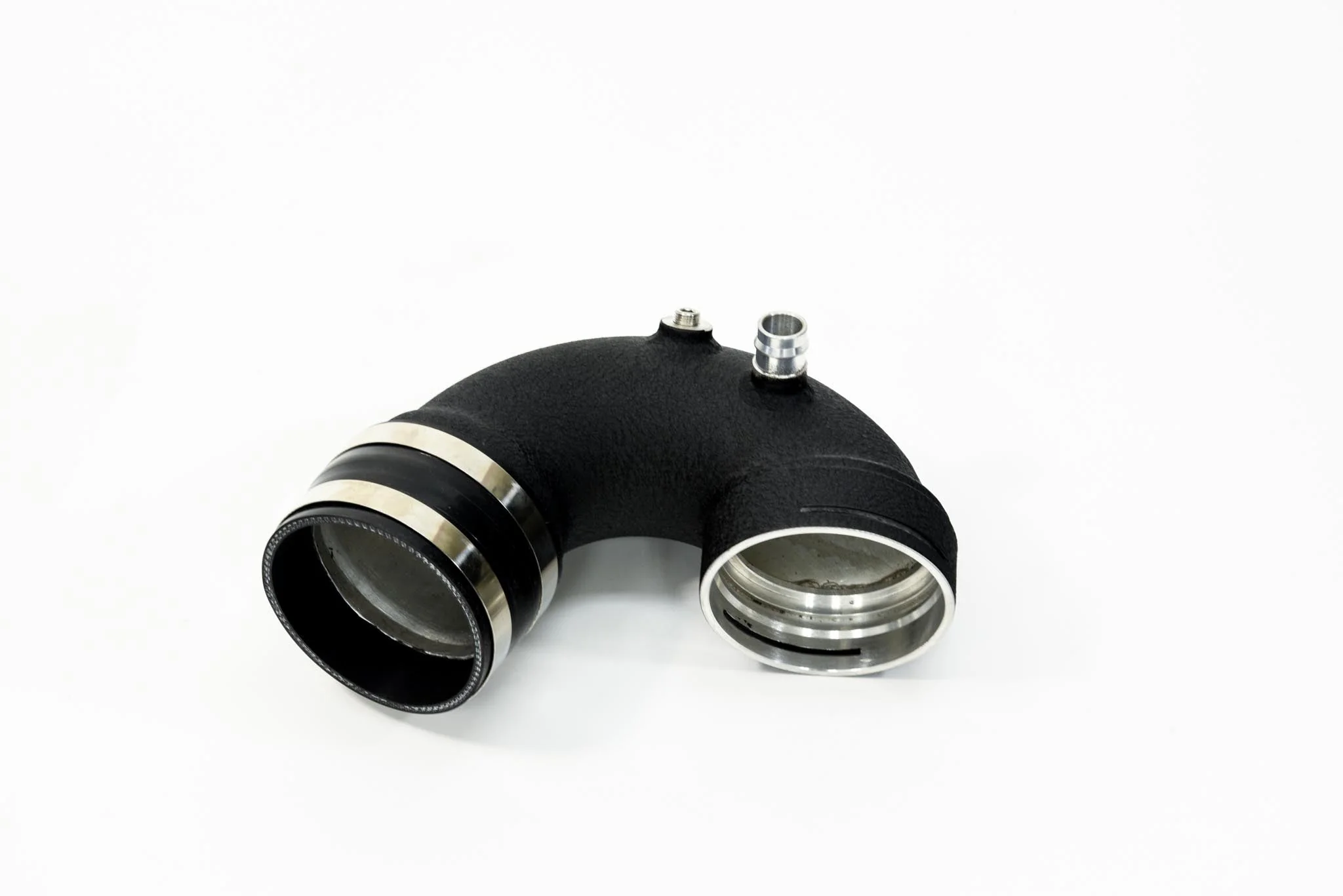

Complete your S55 upgraded charge piping with the ARM S55 J Pipe! This J Pipe is the final piece of piping on the S55 before the charge air enters the intake manifold. BMW constructed the OEM J Pipe of plastic which is prone to cracking an detaching from the throttle body under boost. The ARM S55 J Pipe is constructed of T6061 aluminum for a durable replacement that will hold up to even the most demanding builds.

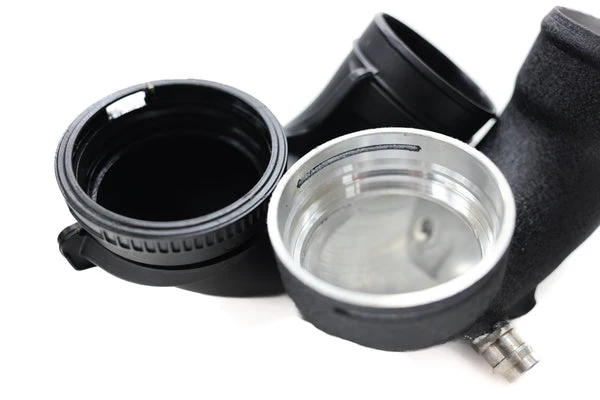

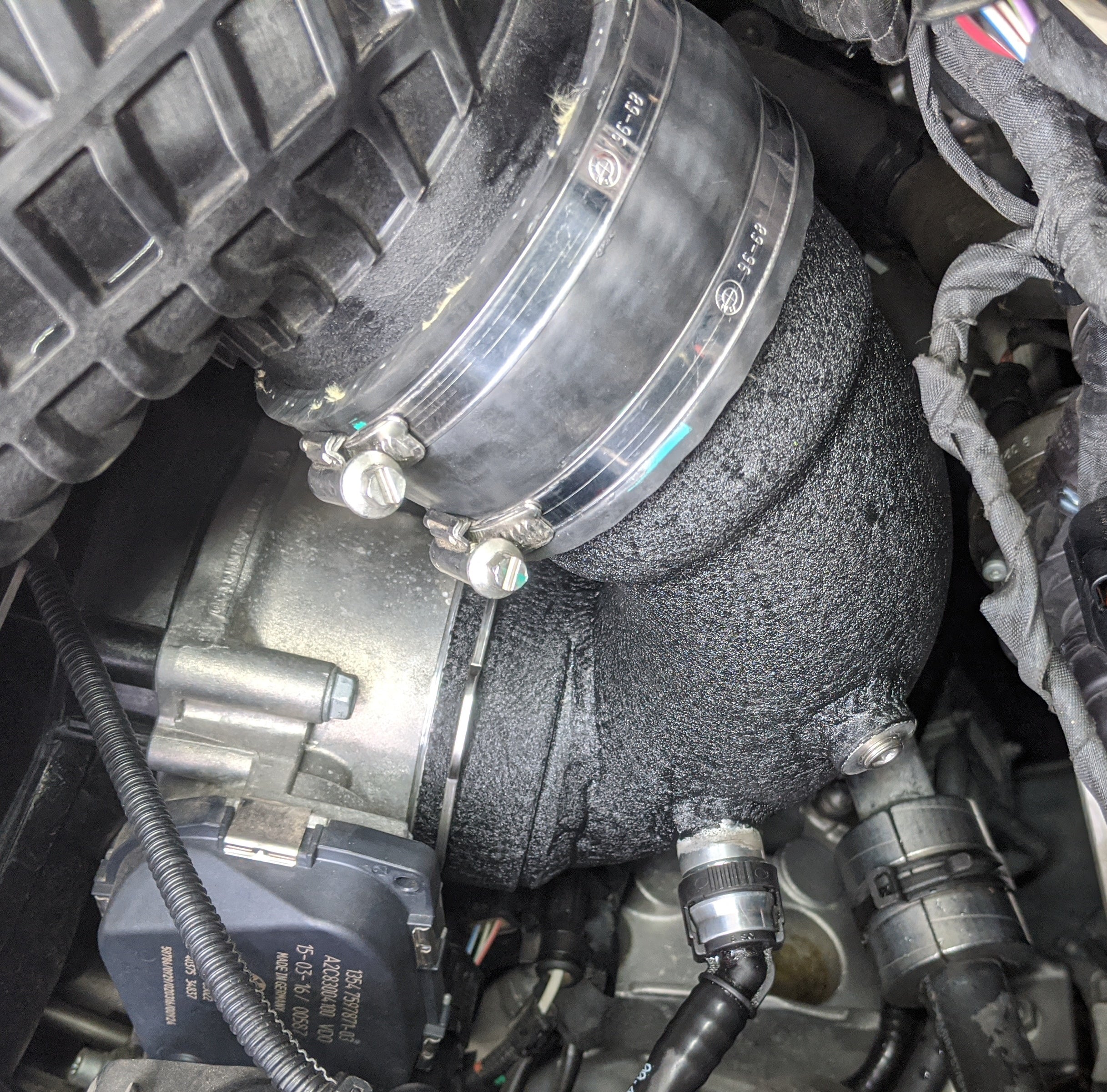

The ARM S55 J Pipe is designed to lock onto the stock throttle body using a CNC machined connector. This connector incorporates a locking C-clip design which replaces BMW's one-time use plastic strip to create a secure connection to the throttle body.
Included with the ARM S55 J Pipe are two pre-plugged 1/8 NPT fittings which allows for post-intercooler methanol or nitrous injection. This is the preferred location of injection for many S55 tuners. J-Pipes with only one methanol port are not able to supply a sufficient amount of methanol for advancing the timing enough to make any substantial power increases.
For reinstalling your S55 vacuum line, the ARM J Pipe has a precisely machined vacuum line connection port to prevent any leaks, a common issue on many other S55 J Pipes.
IN THE BOX
• ARM S55 J-Pipe• Intercooler To J-Pipe Silicone Hose
• Throttle Body Retaining C-Clip
• Clamps
FITMENT GUIDE
| Make | Chassis | Model | Engine |
| BMW | F80 |
M3 |
S55 3.0L |
| BMW | F82 | M4 |
S55 3.0L |
| BMW | F83 |
M4 |
S55 3.0L |
| BMW | F87 |
M2C |
S55 3.0L |
